FEEDBACK INSTITUTE Ltd.


Health Care in Clinical Psychology and Neurology
Dr. Jiri Tyl
Clinical Psychologist, EEG Spectrum Affiliate
Chair, EEG Biofeedback Institute Czech Republic
University Hospital Policlinic
Lannova 2, Prague 1, CZ-11000
Email: tyl@eegbiofeedback.cz
Phone: +420 602 224 964
Fax: +420 224 802 349
E-Mail to: tyl@eegbiofeedback.cz
URL: http://www.eegbiofeedback.cz

OFFERS:

BRAINFEEDBACK ®

EEG BIOFEEDBACK - DIAGNOSTIC EEG/QEEG TWO-TAIL COMPATIBILITY:

EEG Biofeedback ready to upgrade to multichannel QEEG

QEEG-with-Biofeedback integrated system

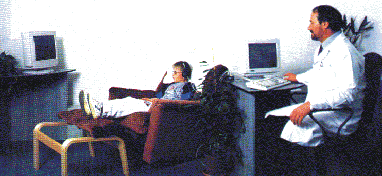

Dual Computer Design for Biofeedback

ensures efficient and quiet sessions for both clients and therapist.

___________________________________________________________________

The BRAINFEEDBACK Client Software was designed to catch client's attention very easily. It allows an individual configuration of video games for each client, adjustable online during session.

.....

Five synchronous modalities of feedback signal:

dynamic (10 games), analog, digital, acoustic, tactile.

BRAINFEEDBACK Therapist Software

for Windows 95/98/NT/2000:

User-friendly, easy to learn. Automatic CD install takes 5 minutes.

You can operate it within minutes after installation.

All training records automatically stored in a user-friendly database. All the clients' saved data available anytime (even during sessions). The flexible access to documentation and therapy progress becomes an important part of the desired quality of your service.

BRAINFEEDBACK ® Hardware

uses the latest innovative technology in order to reach the highest possible reliability. This technology makes us possible to build smart, lightweight, efficient and safe systems with a high quality of signal processing.

Real time impedance measuring combined with FGT (Fast Gabor Transform) signal processing ensures objective and precise results. It also escalates therapeutic effects. (If you prefer classic Fast Fourier Transform, one mouse click can change it.)

Electrodes watching

Battery charge online measure

Portable amplifier (pocket size / weight), notebook adjusted

Supply: 3 cells 1,5 V (AA size) Battery duty duration: 700 hours

SCANNING UNIT TECHNICAL PARAMETERS:

Number of channels (optional): 2 / 4 / 8 / 20 / 24 / 32 / 64 / 128, separate, differential

  • Frequency Band Width: (+0 -1 dB) 500 Hz
  • Analog Time Constant: 1s +- 5 % (possible up to 10 s)
  • Maximum AC Input Range: +- 2 mV
  • Maximum DC Input Range: +- 140 mV
  • Equivalent Referred Input Noise: 2uV p-p in 0.16 - 100 Hz band *
  • Voltage Measurement Accuracy: +- 2 %
  • Time Measurement Accuracy: +- 0.1 %
  • Internal Analog Sample Rate: 4 096 Hz per channel
  • Saved Data Sample Rate: 128 - 1024 Hz per channel
  • High Frequency Reaction: from 525 Hz to 4 kHz: 115 dB / from 4 kHz: 50 dB
  • Common Mode Rejection Ratio: 120 dB (in frequency band 0 - 60 Hz) **
  • Input Differential Impedance: 100 GOhm // 35 pF
  • Input Skin Impedance Range: 0 - 99 kOhm
  • Measured Impedance Accuracy: +- 10 %
  • Measurable Transition Impedance: 1 - 50 kOhm

    (*) Referred to average electrode - skin impedance max. 10 kOhm

    (**) With difference of input impedance's max. 10 kOhm.

    CMRR sufficient for battery run equipment:

    Ground electrode connected to a person measures its potential to the environment perfectly.

    ___________________________________________________________________



    EEG / QEEG DIAGNOSTICS:

    EEG BIOFEEDBACK / EEG PRICES:

    2 channels version (2 active EEG): $ 2,895

    4 channels version - 2 active EEG, 1 EMG, 1 GSR: $ 3,200

    Delivery time: two weeks

    Medical multi-channel EEG with QEEG software:

    Frequency Analysis, Brain Mapping, Coherence Analysis

    And EEG Biofeedback

    20 channels: $ 6,500 / 24 channels: $ 7,000 / 32 channels: $ 7,500

    Delivery time: three weeks

    Evoked Potentials (ERP, VEP) HW/SW for 20+ channels: $ 1,500

    Available with EMG-diagnostics / Videometry - Video Monitoring of subject synchronized with EEG scan



    3 YEAR WARRANTY

    CZ Medical Device Certificate

    (CE level certification by Czech State Institute for Medication Control)

    250 installations IN CLINICAL PRACTICES SINCE 1997

    Affiliate Network of EEG Biofeedback Institute, established by our Training Courses, includes 200 professionals, using Brainfeedback in:

    Czechia, Slovakia, Germany, Poland, Hungary, Sweden, Norway, Denmark, Austria, Spain, Portugal, Romania, Macedonia, Greece, Israel, Turkey, Jordan, Guatemala, USA

    INTERESTED? CONTACT:

    Dr. Jiri TYL, Lic. Clin. Psychologist, EEG Spectrum Affiliate

    Chair, EEG Biofeedback Institute of Czech Republic

    Phone: + 420 - 602 224 964 tyl@eegiofeedback.cz

    University Hospital Policlinic, Lannova 2, Prague 1, CZ-110 00 Czech Republic

    Phone / Fax: + 420-2-2480 2349 - http://www.eegbiofeedback.cz

    		•

    "EEG BIOFEEDBACK FOR PROFESSIONALS"

    Education and Training in EEG Biofeedback - Theory and Practice

    Open for:

    Psychologists, physicians, and related graduate professionals

    (educational counselors, speech therapists, physiotherapists, registered nurses, teachers, manager trainers a.s.)



    Faculty:

    Prof. J. Faber, M.D., Ph.D.

    Neurology Clinic of 1st Medical School, Charles University Prague

    J. Tyl, Ph.D.

    Chair, EEG Biofeedback Institute of CR, EEG Spectrum Affiliate

    V. Tylova, Ph.D.

    EEG Spectrum Affiliate, Feedback Institute Prague







    CURRICULUM TOPICS:

    1. Theory

    Neurophysiology and Electroencephalography Basics for Neurofeedback

    Brain Functions and Dysfunctions

    Psychology of EEG Biofeedback



    2. Practice:

    Clinical Internship - Feedback Institute

    hands-on training, work with clients under supervision



    3. Experience:

    10 self-experiential sessions of EEG Biofeedback

    __________________________________________________________

    • All lessons in English.
    • Attendees will obtain certificate of EEG Biofeedback Institute approving for practice.
    • Syllabus, protocols manual, marketing basics included.
    • Full course: 60 hours (theory and internship)
    • Length of course: one week
    • Extra Internships available
    • The course runs in Prague. Extensions abroad available on request.
    • Price: 500 USD

    ____________________________________________________________________

    We have trained 220 practitioners

    from Czechs, Slovakia, Poland, Hungary, Sweden, Norway, Macedonia, Greece, Turkey, Israel, Jordan, Spain, Portugal, Germany, Romania, Guatemala, USA

    since 1997 to 2001.

    ____________________________________________________________________________



    ADVANCED EEG COURSE: ONE WEEK, 1,000 USD.

    ______________________________________________________________

    Detail information:

    EEG BIOFEEDBACK INSTITUTE

    EEG Biofeedback, Clinical Psychology, Neurology
    Charles University Hospital Policlinic

    Lannova 2, Prague 1
    CZ-110 00 Czech Republic

    Phone / Fax:  + 420 2 2480 2349


    Dr. Tyl: + 420 602 224 694

    E-mail: <tyl@eegbiofeedback.cz>

    URL:    <http://www.eegbiofeedback.cz>
